Product Description

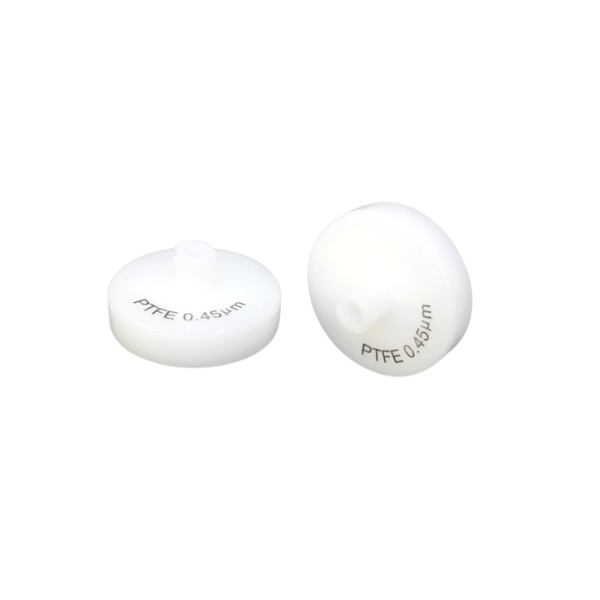

Nexflo GD/X Filters
Less Pressure Required
Comprise of 4 Layers of Membranes
Volume of Sample filtered can be 3-7 times more than conventional filters Designed to filter solutions with high solids content or hard-to-filter viscous samples with Less Pressure and Fast Flow Rate
Description
Nexflo GD/X Filter
| Cat. No. | Membrane | Dia | Pore Size | Sterile | Packing |
|---|---|---|---|---|---|
| NXGDXN2522 | NYLON | 25mm | 0.22um | N | 100 |
| NXGDXN22545 | NYLON | 25mm | 0.45um | N | 100 |
| NXGDXPVDF2522 | PVDF Hydrophobic | 25mm | 0.22um | N | 100 |
| NXGDXPVDF22545 | PVDF Hydrophobic | 25mm | 0.45um | N | 100 |
| NXGDXPTFE2522 | PTFE Hydrophobic | 25mm | 0.22um | N | 100 |
| NXGDXPTFE22545 | PTFE Hydrophobic | 25mm | 0.45um | N | 100 |
| NXGDXPES2522 | PES | 25mm | 0.22um | N | 100 |
| NXGDXPES22545 | PES | 25mm | 0.45um | N | 100 |
Nexflo GD/X Filter Sterile
| Cat. No. | Membrane | Dia | Pore Size | Sterile | Packing |
|---|---|---|---|---|---|
| NXGDXN2522-1 | NYLON | 25mm | 0.22um | Y | 100 |
| NXGDXN22545-1 | NYLON | 25mm | 0.45um | Y | 100 |
| NXGDXPVDF2522-1 | PVDF Hydrophobic | 25mm | 0.22um | Y | 100 |
| NXGDXPVDF22545-1 | PVDF Hydrophobic | 25mm | 0.45um | Y | 100 |
| NXGDXPTFE2522-1 | PTFE Hydrophobic | 25mm | 0.22um | Y | 100 |
| NXGDXPTFE22545-1 | PTFE Hydrophobic | 25mm | 0.45um | Y | 100 |
| NXGDXPES2522-1 | PES | 25mm | 0.22um | Y | 100 |
| NXGDXPES22545-1 | PES | 25mm | 0.45um | Y | 100 |
Related Products
- Low adsorption
- Low hold-up volume
- Superior flow rate
- High total throughput
- Color coded For easy identification
- Large filtration area by distributing rings
- Compatible & Stable with Wide Range of Chemicals
Mixed Cellulose Ester is Composition of Cellulose Acetate and Cellulose Nitrate
Non Toxic Ink to Print Grid lines
Grid Lines Spaced at 3.1mm Intervals
Clear contrast for easier detection
Applications:-
Colony counting
General Microscopy
Particulate counting and analysis
Industries: Bottled Water
Food & Beverage (Beer, Wine, carbonated drinks, etc.)
Environmental
Cosmetics
Pharmaceutical
Easy to use
- Inlet/ Outlet : Stepped Hose Barb
- PTFE Membrane & Polypropylene housing have broad chemical resistance
- Autoclavable
- Large Filter Area ensures high flow rate
- Ideal for Sterilizing Gases -venting sterile bottles, Sterilizing Organic Solutions,
- In-line sterilization & particulate removal from air and gases
Easy to use
Autoclavable
Made from High Quality Borosilicate Glass
Light weight
Very Easy to Use
Attain vacuum of 25”
Moulded Hard Case
