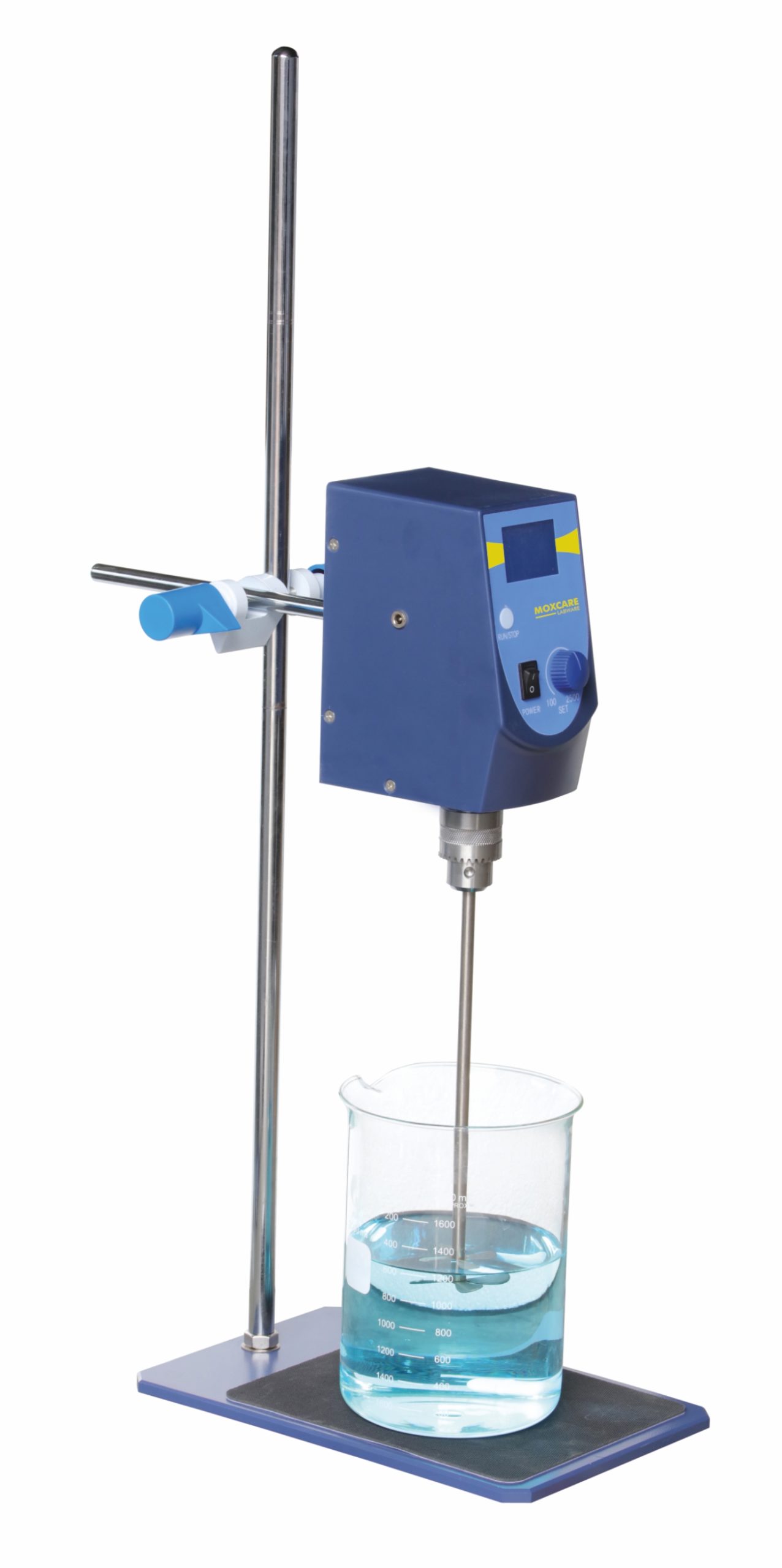

Overhead Stirrer
Brushless Motor
Heavy Base provides Stable design
20Lt. & 40Lt. Capacity Model Available
Large Backlit LCD Display
Variable Speed upto 2500 RPM
Digital timer allows unsupervised operation
Microprocessor Ensures accurate temperature control
Description
| Specifications | OS-20L | OS-40L | |
|---|---|---|---|
| Speed Range | 100-2500 RPM | Â 100-2500 RPM | |
| Speed Display | Bacllit LCD Diaplay | ||
| Maximum Volue H2O, L | 20L | 40L | |
| Motor | Brushless DC Motor | ||
| Motor Output | 600W | Â 800W | |
| Max.Torque | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 60nm | ||
| Viscosity MAX | 10,000mpas | 50,000mpas | |
| Timer | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Yes | ||
| Plate Size | Â Â Â Â Â Â Â Â Â Â Â 200x300mm | ||
| Plate Load | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 50kg | ||
| Permissible Ambient Temperature |               5 – 40° C | ||
| Permissible Relative Humidity | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 80% | ||
| Protection Class | Â Â Â Â Â Â Â Â Â Â Â Â Â Â IP42 | ||
| Voltage, Frequency | Â Â Â Â Â Â Â Â 200 -240V, 50 Hz | ||
| Dimensions | Â Â Â Â Â Â Â Â Â 115x95x240mm | ||
| Weight | 6kg | 7kg | |
| OVERHEAD STIRRER | ||
| Cat. No. | Description | Packing |
| OS20L | Overhead Stirrer 20Lt. (Price Includes Stand & Stainless Steel Cross Shaft) | 1 |
| OS40L | Overhead Stirrer 40Lt. (Price Includes Stand & Stainless Steel Cross Shaft) | 1 |
| OS-20 PTFE | Accessory Straight stirrer PTFE coated (Any One 330x63mm, 400x80mm) | 1 |
