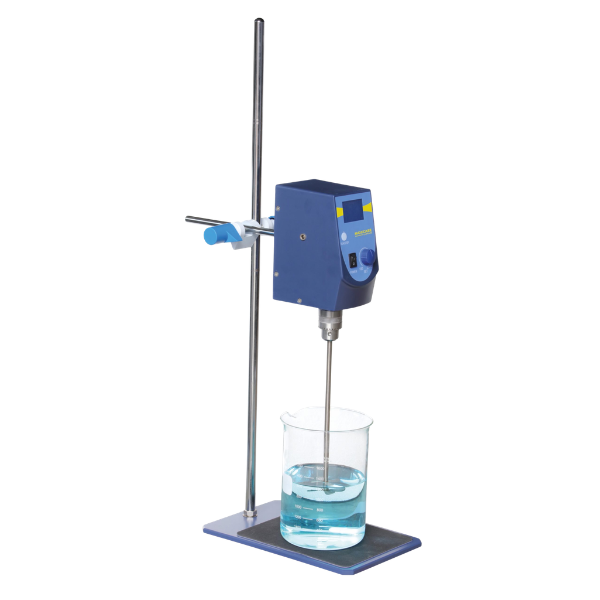

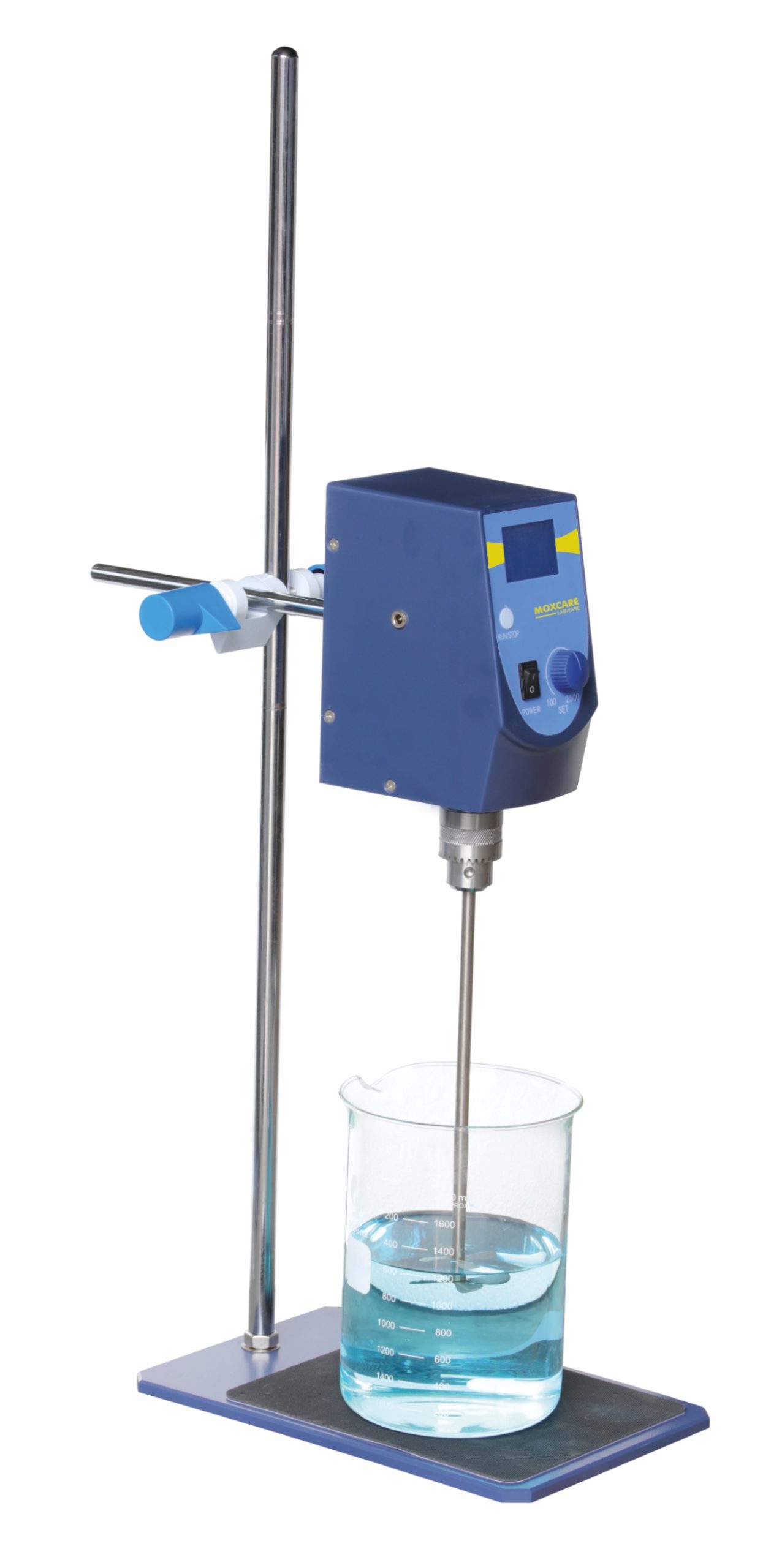

Overhead Stirrer
Brushless Motor
Heavy Base provides Stable design
20Lt. & 40Lt. Capacity Model Available
Large Backlit LCD Display
Variable Speed upto 2500 RPM
Digital timer allows unsupervised operation
Microprocessor Ensures accurate temperature control
Description
Specifications | OS-20L | OS-40L | |
---|---|---|---|
Speed Range | 100-2500 RPM | 100-2500 RPM | |
Speed Display | Bacllit LCD Diaplay | ||
Maximum Volue H2O, L | 20L | 40L | |
Motor | Brushless DC Motor | ||
Motor Output | 600W | 800W | |
Max.Torque | 60nm | ||
Viscosity MAX | 10,000mpas | 50,000mpas | |
Timer | Yes | ||
Plate Size | 200x300mm | ||
Plate Load | 50kg | ||
Permissible Ambient Temperature | 5 – 40° C | ||
Permissible Relative Humidity | 80% | ||
Protection Class | IP42 | ||
Voltage, Frequency | 200 -240V, 50 Hz | ||
Dimensions | 115x95x240mm | ||
Weight | 6kg | 7kg |
OVERHEAD STIRRER | ||
Cat. No. | Description | Packing |
OS20L | Overhead Stirrer 20Lt. (Price Includes Stand & Stainless Steel Cross Shaft) | 1 |
OS40L | Overhead Stirrer 40Lt. (Price Includes Stand & Stainless Steel Cross Shaft) | 1 |
OS-20 PTFE | Accessory Straight stirrer PTFE coated (Any One 330x63mm, 400x80mm) | 1 |
